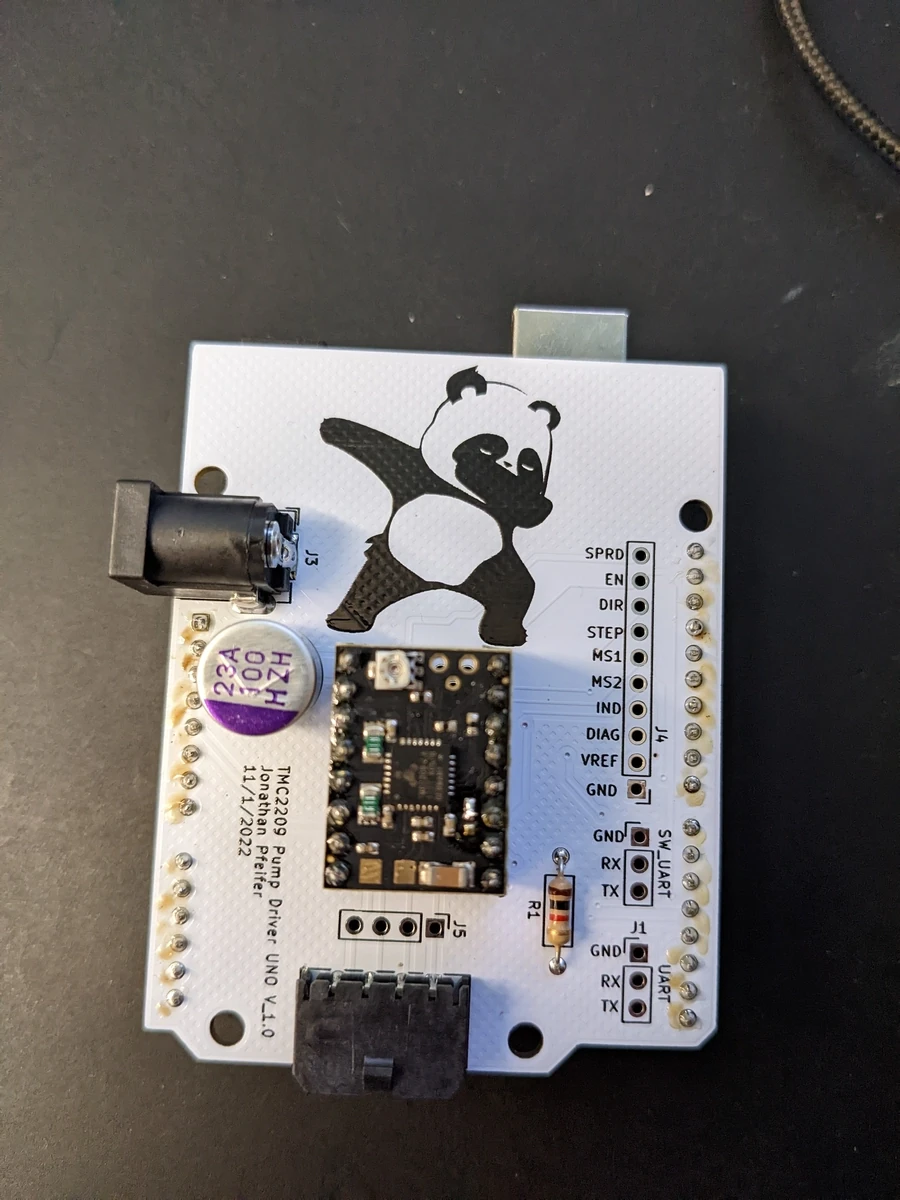

Panda Driver Uno
CERN-OHL-S-2.0A stepper motor driver board plus firmware for the silent step stick 2209 in an Arduino uno form-factor.
Panda Driver Uno
This is an Arduiono shield with the matching firmware to run a silentstepstick 2209. It utilizes the UART control on the stepstick to handle pulsing and all controls.
It has been tested
Contributors
- Jonathan A. Pfeifer — Project lead · Woods Hole Oceanographic ✔ ORCID 0000-0002-6155-4846
Repositories
- Zenodo deposit Zenodo
Project files
- pandadriveruno.zip · on Zenodo
Cite this project
Project DOI (always points at the latest version):
10.5281/zenodo.21079853
Latest version DOI (v1):
10.5281/zenodo.21079854
· All versions
Cite the project DOI for the work as a whole. Cite a version DOI when you need to point at exactly one snapshot.
Tags
motor driver silent step stick stepper motorSubmitter's self-rating
7/10 (self-reported by the submitter)
This is a basic board that we used for testing our peristaltic pump drivers on the bench. Only did some bench work and it worked great for that.
